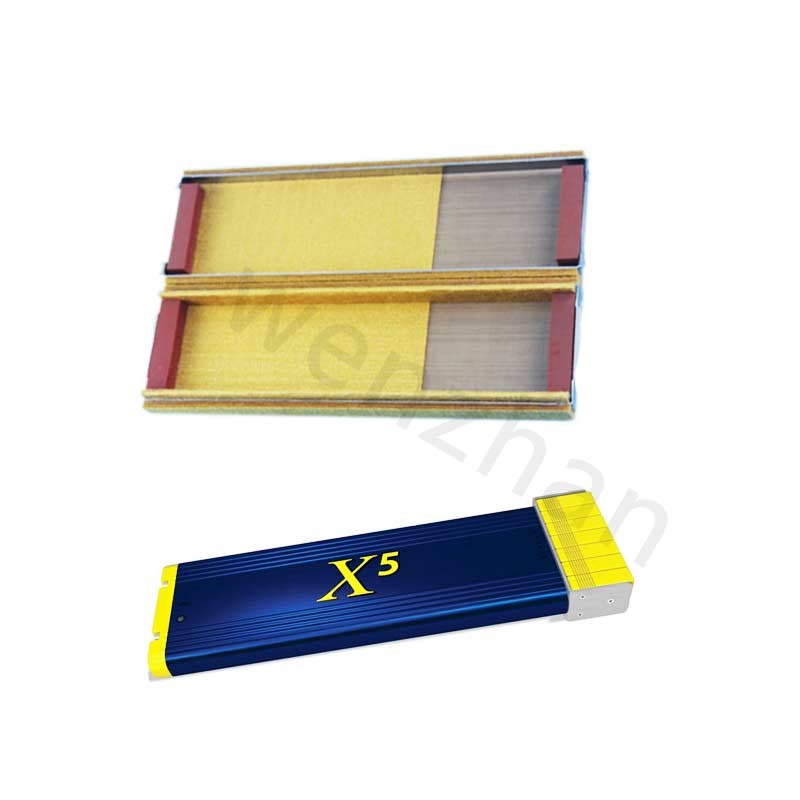

SMT 9 channels Thermal Profiler KIC X5 Temperature Tester for reflow oven
Introduction to KIC X5 Nine-Channel Furnace Temperature Tester
The KIC X5 is a nine-channel furnace temperature tester designed for use in industrial settings, such as metalworking and electronics manufacturing. The device uses thermocouples to measure temperature, and includes a variety of features to help users ensure optimal performance and efficiency.
One of the key features of the KIC X5 is its ability to monitor and control temperature in multiple zones simultaneously. This allows users to optimize their processes and reduce the risk of defects or other issues that can arise from temperature variations.
The device also includes advanced software that provides real-time monitoring and analysis of temperature data. Users can view temperature profiles, identify potential issues, and make adjustments as needed to maintain optimal performance.
Other notable features of the KIC X5 include:
a . Automatic calibration to ensure accurate measurements
b . Support for a wide range of thermocouples and sensors
c . Compatibility with a variety of furnaces and ovens
d . Easy-to-use interface for quick setup and operation
e . Robust construction for durability in industrial settings
Overall, the KIC X5 is an advanced and versatile furnace temperature tester that offers a range of features to help users optimize their processes and achieve consistent, high-quality results.
| Accuracy | ± 0.5°C |
| Resolution | 0.1°C |
| Internal Operating Temp: | 0°C to 85°C |
| Sample Rate: | 0.002 to 10 readings/sec |
| Data Points: | 224,640 |
| PC Connection: | USB 2.0 (Std-A/Mini-B) |
| Power Requirements: | (3) AAA batteries |
| 7, 9, 12 Channel Unit | Type K, Standard |
| Temperature Range: | -150°C to 1050°C |
| 7 Channel Unit: | 202.0 x 60.0 x 17.0 |
| 9 Channel Unit: | 202.0 x 75.0 x 17.0 |
| 12 Channel Unit: | 208.0 x 98.0 x 17.0 |
| Thermal Shield: | See Temperature |
| Shield | DIMENSIONS (mm)
(Length x Width x Height) | 150C | 200C | 250C | 300C | 350C | 400C |
| Cool Touch Stainless Steel Shield, 7 CH | 302 x 75 x 23 | 17.5 | 12.0 | 9.0 | 7.7 | 6.5 | |
| Cool Touch Stainless Steel Shield, 9 CH | 312 x 90 x 23 | 18.1 | 13.1 | 10.1 | 8.4 | 6.7 | |
| Cool Touch Stainless Steel Shield, 12 CH | 323 x 113 x 23 | 17.7 | 12.0 | 8.9 | 7.4 | 6.1 | |
| HT Shield 400 | 298 x 106 x 29 | 24.9 | 17.6 | 14.0 | 11.5 | 10.1 | 9.2 |
